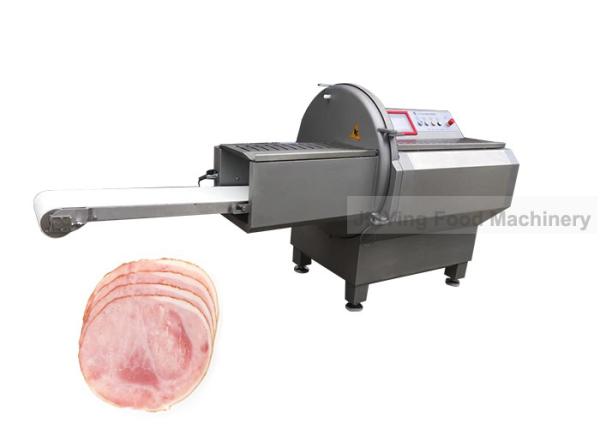

Industrial Bacon Slicer With Portion Function Automatic Meat Slice Cut Machine
Hot Selling Machines:
Application
- Ham/bacon slicer refers to the equipment for cutting slices, segments and cuts of steak, ribs, cold meat and other medium and large-sized ingredients through the transmission system and the movement of the knife.
With the excellent portioning cutting function;
It adopts gentle circular blade technology;
Precision screw holding device to control the raw material with tolerance 0.01 mm;
Human Machine Interface is adopted to set slicing parameters;
Servo motor, reducer and blades are connected in direct combination mode to ensure the precision and high efficiency;
The whole machine is made of stainless steel;
Safety is guaranteed by emergency power off system when open the blades cover, discharging channel, and feeding hopper.
Advantage
1. The cutting size can be adjusted.
2. It is made of stainless steel and the cutting surface is smooth.
3. High speed,high quality, high efficiency.
Cutting Effect Display
Specification
| Model | JY-17K | JY-21K | JY-25K | JY-36K |
| Dimension | 1700*750*1250mm | 1770*720*1270mm | 1850*950*1480mm | 1820*1200*1550mm |
| Cutting Size | 1~32mm | 1~32mm | 1~32mm | 1~32mm |
| Capacity | 155pcs/min | 200pcs/min | 210pcs/min | 220pcs/min |
| Inlet Size | 170*150mm | 210*230mm | 250*200mm | 360*200mm |
| Power | 3.4KW | 3KW | 4.4KW | 5.5KW |
| Votage | 380V | 380V | 380V | 380V |
| Net Weight | 400KG | 450KG | 500KG | 700KG |
Biggest feature:
1. Slice materials evenly and smoothly, such as cheese, sausage, meat, root vegetable, etc.
2. the slice thickness is adjustable from 1-30mm.
3. High efficiency, the capacity can be 200 pcs/min.
4. Motor and Blade are imported form Germany.
5. high efficiency feeding system, make the machine more efficiency.
6. Intelligent pneumatic cutting assistant, material slip proof. ensure the high quality of the final product.
7. Intelligent remainder throwing device, Increased utilization of raw materials
8. The tool is directly connected to the gear drive motor, with high power efficiency and reliable safety measures.
We have revelant running video to show you, if you need it welcome to contact us!
